HD DIAMOND HD-1226 Professional Column Array PA Speaker

Experience powerful sound coverage, exceptional vocal clarity, and professional-grade performance with the HD DIAMOND HD-1226 Column Array PA Speaker System. Designed for DJs, live performers, event organizers, houses of worship, banquet halls, and professional audio applications, the HD-1226 delivers impressive sound projection through its modular 6-foot line array design.

The system combines an 8-inch high-excursion subwoofer with six premium neodymium array drivers to provide deep bass, detailed mids, and crystal-clear highs across large venues.

Professional Modular Line Array Design

The HD-1226 features a modular 4-piece construction:

• 1.5 ft Powered Subwoofer Base
• 1.5 ft Dummy Extension Column
• 1.5 ft Dummy Extension Column
• 1.5 ft Active Array Column with 6 Drivers

Total Assembled Height: 6 Feet

This elevated line array design ensures improved sound dispersion, better audience coverage, and consistent audio performance across the venue.

Powerful Audio Performance

Driver Configuration

• 1 × 8" High Excursion Subwoofer
• 6 × 2.75" Neodymium Array Drivers
• Professional Line Array Sound Projection
• Wide Coverage & Long Throw Performance

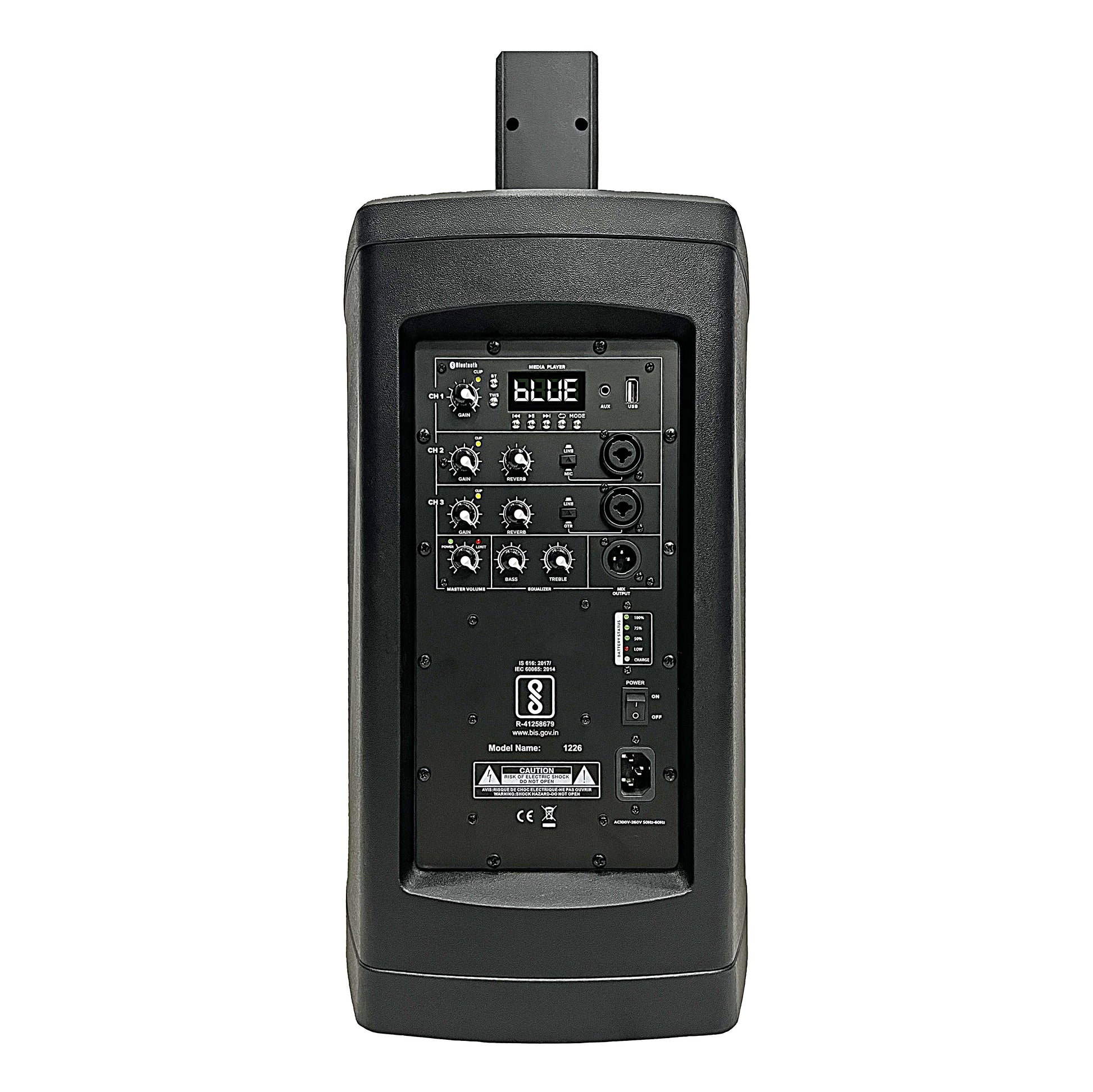

Built-In Professional 3-Channel Mixer

Channel 1

• Bluetooth Audio Streaming
• USB Media Playback
• AUX Input
• TWS Pairing
• Independent Gain Control

Channel 2

• Mic / Line Input
• Reverb Control
• Combo XLR & ¼" Input

Channel 3

• Guitar / Line Input
• Reverb Control
• Combo XLR & ¼" Input

Master Controls

• Master Volume
• Bass Control
• Treble Control
• Clip Indicators
• LCD Display
• XLR Mix Output

Connectivity Options

• Bluetooth Wireless Streaming
• USB Playback
• AUX Input
• XLR Mix Output
• Mic Input
• Guitar Input
• TWS Stereo Pairing

Ideal For

• DJs & Live Performers
• Wedding Events
• Banquet Halls
• Religious Gatherings
• Corporate Presentations
• Schools & Auditoriums
• Rental Sound Businesses
• Outdoor Events

Specifications
